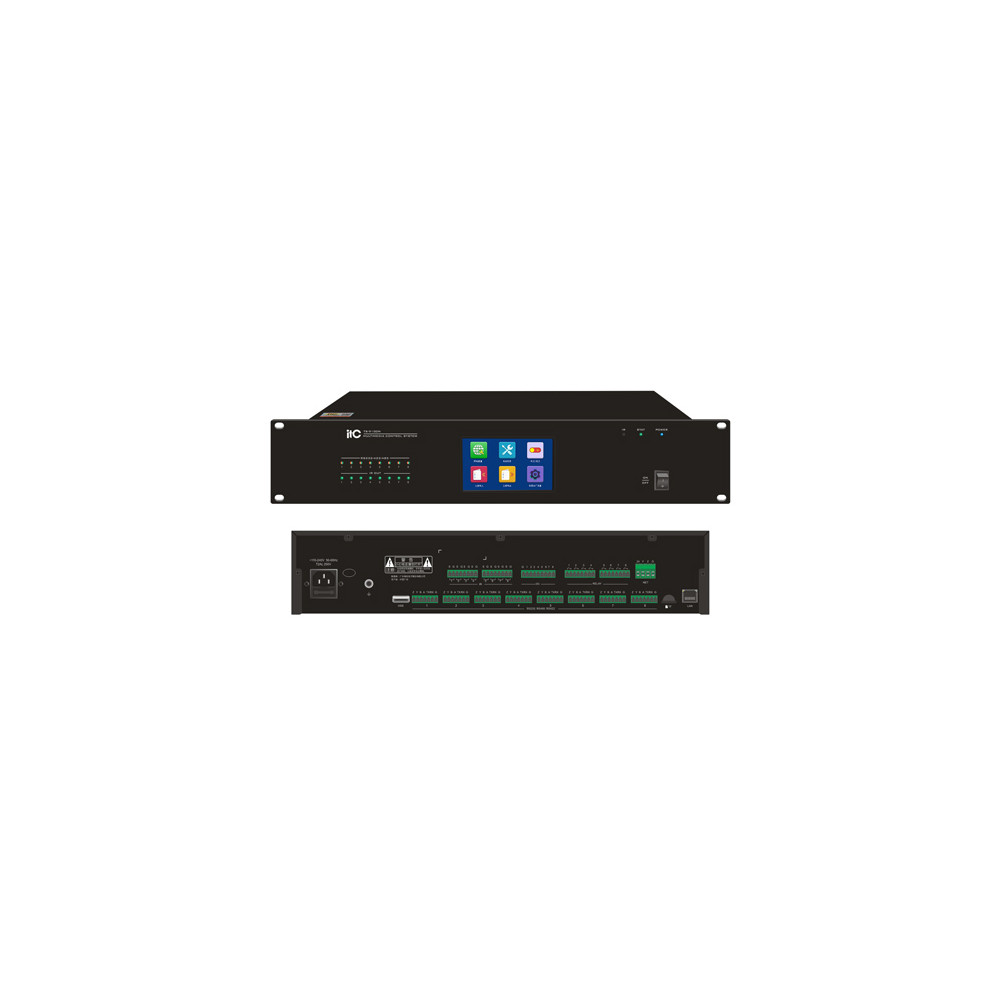

ITC - TS-9100N, Professional Intelligent Network Central Controller

Characteristics

- Intelligent network central controller

- 32-bit ARM Cortex-A8 architecture

- Centralized AV equipment management

- Compatible with iOS and Android devices

- Wi-Fi and Ethernet control support

- 4.3-inch color LCD touchscreen

- Chinese and English programming interface

- Advanced C-language programming architecture

- Third-party device integration

- TCP, UDP, HTTP and Telnet support

- MQTT and SNMP protocol support

- RS-232, RS-422 and RS-485 communication

- Built-in infrared learning module

- Importable IR code libraries

- Audio system management

- Video matrix switching control

- PTZ camera control

- LED display and projector control

- Motorized curtain control

- Lighting and HVAC management

- Automated scene scheduling

- Voice control compatibility

- QR code remote access

- Scheduled task management

- Two-way status feedback

- Multi-screen video preview

- TF card data backup

- Multi-controller cascade operation

- Hot backup redundancy support

- IoT sensor integration

- Remote Internet control

Specifications

- Model: TS-9100N

- Product Type: Network Central Controller

- Processor:

  32-bit Cortex-A8 ARM processor

  Up to 720 MHz clock speed

- Memory:

  256 MB DDR3 RAM

  8 GB EMMC Flash

- Display:

  4.3-inch color LCD touchscreen

- Serial Ports:

  8 programmable ports

  RS-232

  RS-422

  RS-485

- Infrared Ports:

  8 programmable IR ports

- I/O Ports:

  8 digital I/O ports

  0–5V signal input

- Relay Outputs:

  8 low-current relay outputs

  1A / 5V rating

- Network Interface:

  1 NET control port

  Supports up to 256 network devices

  DC 24V / 2A output

  Memory Expansion:

  TF card slot

- Network Protocols:

  TCP

  UDP

  HTTP

  Telnet

  MQTT

  SNMP

- Power Supply:

  AC 110-240V

  50/60Hz

- Power Consumption:

  12W

- Installation:

  Standard 19-inch rack mount

  2U height

- Dimensions:

  484 × 236 × 88 mm

- Weight:

  4.3 kg

- Software:

  Control System Builder

- Application:

  Professional indoor AV control systems
